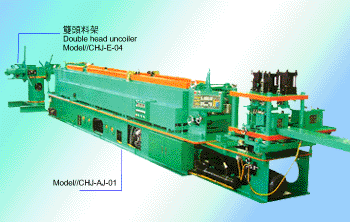

Model//CHJ-AJ-01

----------------------------------------------------

This machins is computerized special designed for various widths and heights. This machine is capable to set up the multiple sizes and automatic punching.
The thickness, width, and height are adjustable and fully controlled by the computer All you need is just key in sizes and press the contorl button and then machine will automatically adjust the rollers according to your requirement. The time during adjusting process is around 2 ~ 3minutes without changing rollers.




SHEET THICKNESS

2.3∼3.0mm

FORMING SPEED
18∼25m
PER MINUTE
ROLLER SHAFT DIA
φ80mm
ROLLER STATIONS
14
MOTOR OUTPUT
40hp
LENGTH × WIDTH
L 9.3 ~ 10M
W 1.5∼1.8M
SINGLE HEAD UNCOILER
3∼5Ton
